Electric Pallet Trucks
Quick, safe, easy.
Lithium powered pedestrian pallet trucks for warehouses, shops and loading docks. Small, light and simple to drive.
Electric Pallet Truck CBD-15
Lithium powered, quiet and zero emissions. Suits indoor warehouse work and yard use.
Capacity
1,500 kg
Lift height
200 mm
Battery
Replaceable lithium

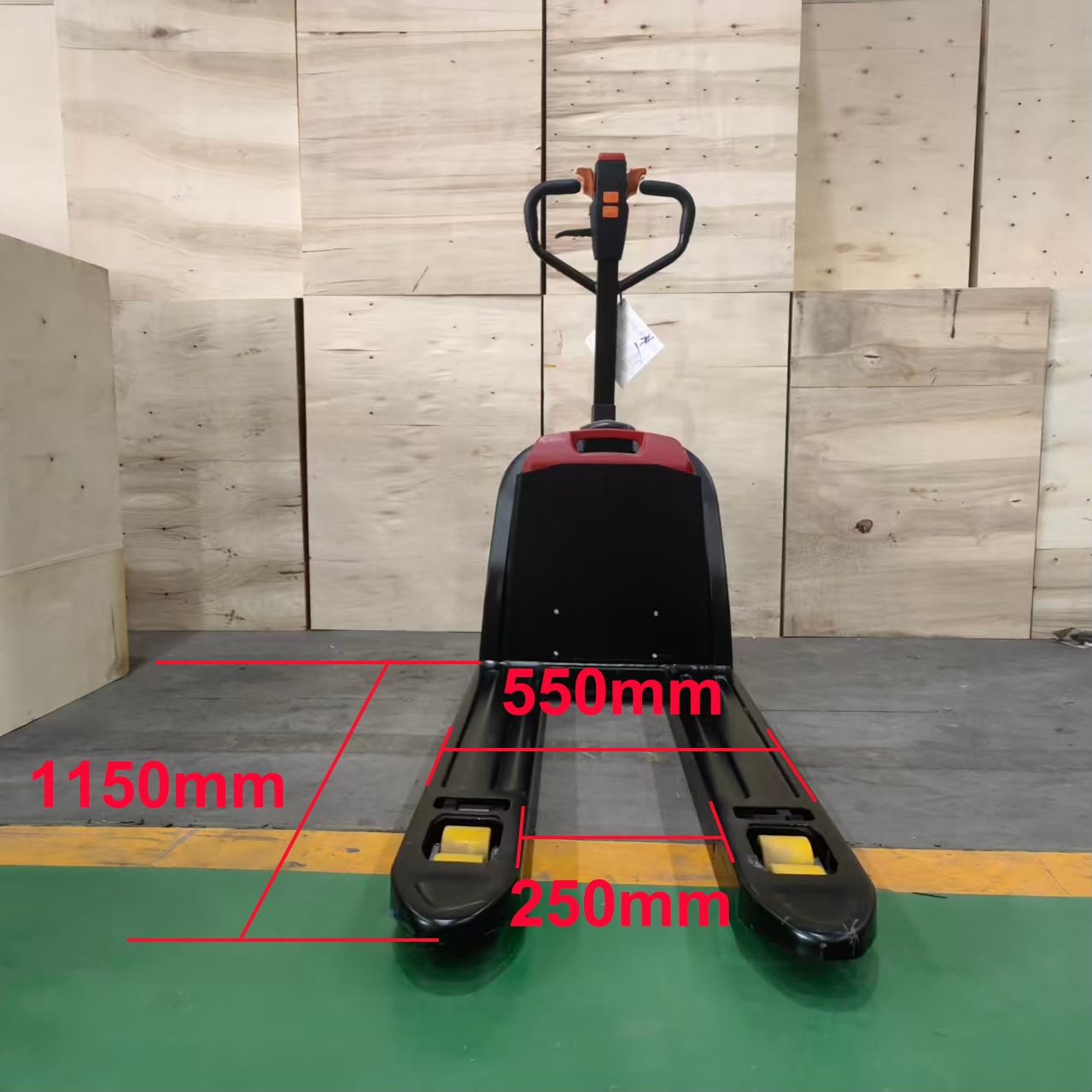

Forks
1,150 × 550 mm
Wheels
Polyurethane (PU)
Travel speed
4.2 km/h
Weight
142 kg
Turning radius
1,398 mm
Capacity
2,000 kg
Lift height
200 mm
Battery
Replaceable lithium
Forks
1,150 × 550 mm
Wheels
Polyurethane (PU)
Travel speed
4.5 km/h
Weight
Turning radius
Why choose this truck
01
Rugged build
Made to last through long, hard shifts.
- Thickened steel, high-strength manganese steel frame

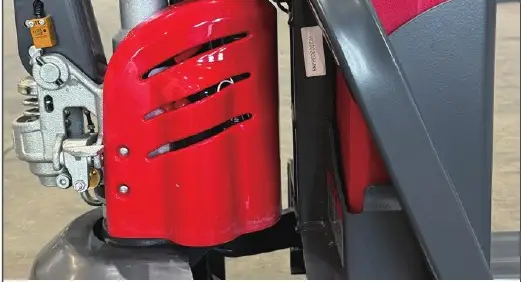

- Curtis controller and cooling fan for stable operation
- Durable bearings and wear-resistant PU wheels
02
Safe, smooth control
Easy to learn, even for new operators.
- MOS stepless speed regulation for accurate control
- Automatic brake when you let go
- Smooth lifting and a handle that rebounds linearly
03
Lithium power, low running cost
Swap the battery and keep working.
- Replaceable Li-ion battery
- Efficient DC traction motor, strong power, low energy use
- Wear-resistant drive wheel

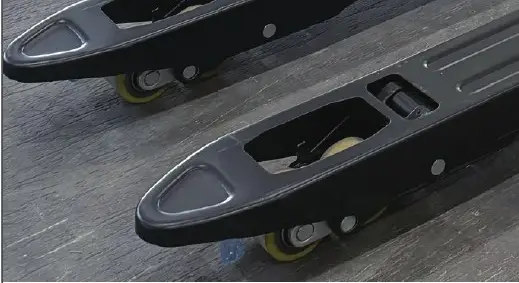

Wear-resistant PU wheels
Quiet, smooth rolling on warehouse floors.
Replaceable Li-ion battery
Swap the battery to keep working.
Durable bearings
Built for long service life.
Tiller head linear rebound
Handle returns smoothly for safety and comfort.
See it in action
How to operate
Full specification
CBD-15 / CBD-20 pedestrian electric pallet truck.
Characteristics
- Model
- CBD-15 / CBD-20
- Power unit
- Electric
- Operation
- Pedestrian
- Rated capacity
- 1,500 kg / 2,000 kg
- Load centre
- 600 mm
- Wheelbase
- 1,243 mm
- Service weight with battery
- 142 kg / 146 kg
Wheels
- Wheel type
- Polyurethane (PU)
- Drive wheel
- 210 x 70 mm
- Load wheel
- 80 x 60 mm
- Track width
- 400 / 535 mm
Dimensions
- Lift height
- 200 mm
- Lowered height
- 85 mm
- Overall length
- 1,603 mm
- Overall width
- 550 / 685 mm
- Fork size (thickness / width / length)
- 50 / 150 / 1,150 mm
- Min. ground clearance
- 35 mm
- Min. turning radius
- 1,398 mm
- Aisle width, pallet 1000 x 1200 across forks
- 1,804 mm
Performance & drive
- Travel speed, laden / unladen
- 4.2 / 4.5 km/h
- Max. gradient, laden / unladen
- 5% / 10%
- Service brake
- Electromagnetic
- Drive motor
- 0.75 kW
- Lift motor
- 0.5 kW (CBD-15) / 0.8 kW (CBD-20)
- Battery
- 24V 20/30/40/60Ah or 48V 20/30Ah
- Drive control
- DC
- Noise level
- 70 dB(A) or less
- Steering
- Mechanical
Brochure & datasheet
Everything in one PDF.

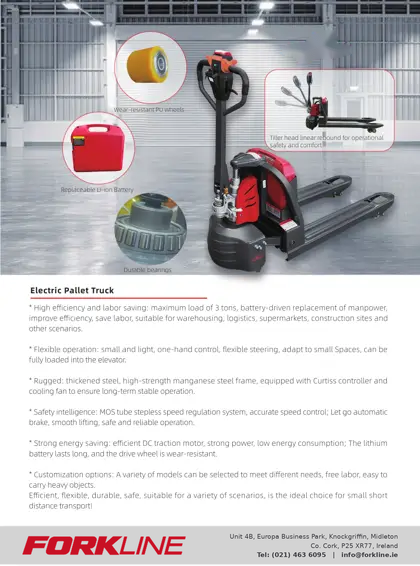

- Product features and photos

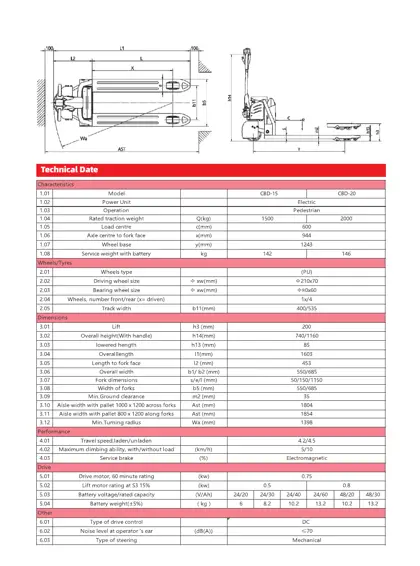

- Dimensions drawing
- Full technical data for CBD-15 and CBD-20
Need help choosing the right truck?
Tell us what you lift, how high and how often — our team will point you to the right model and a sharp price, fast.
