- New equipment. Clear specifications. Ready to quote.
Stack higher.
In less space.
Compact electric stackers for narrow aisles, warehouses and loading bays. Strong mast, smooth control, easy to drive.

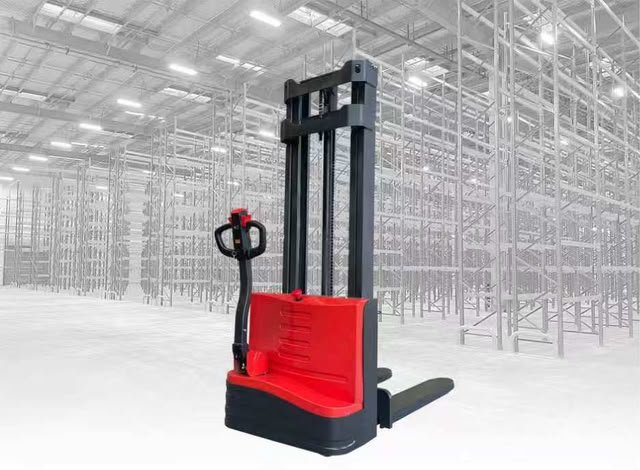

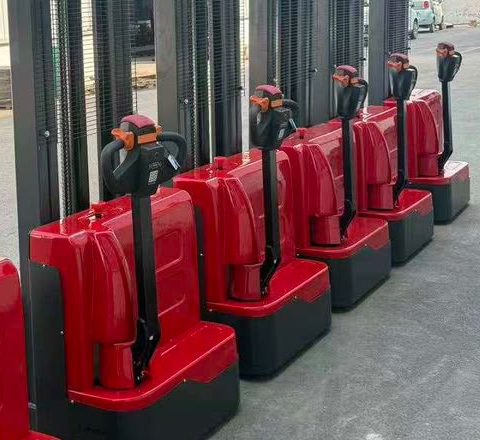

Electric Stacker CPD-15G
Side-operation walkie stacker with a simple structure that is easy to maintain and repair. Suits warehouses, racking and loading areas.
Capacity
1,500 kg @ 500 mm
Lift height
3,000 mm
Battery
4 × 12 V / 32 Ah
Forks
1,150 mm long
Wheels
Polyurethane (PU)
Travel speed
3.5 / 3.8 km/h
Weight
500 kg with battery
Turning radius
1,420 mm
Why choose this stacker
Built for tight aisles and long shifts: compact, strong, safe and easy to use.
01
Simple, reliable build
Easy to maintain and repair.
- Newly designed side-operation stacker, simple structure
- Horizontal drive wheel and quality electrical parts
- Free lift available as an option
02
Safe, smooth control
Reliable controller with excellent performance.
- Electromagnetic braking
- Reverse button and emergency stop button
- Battery level indicator and hour meter
03

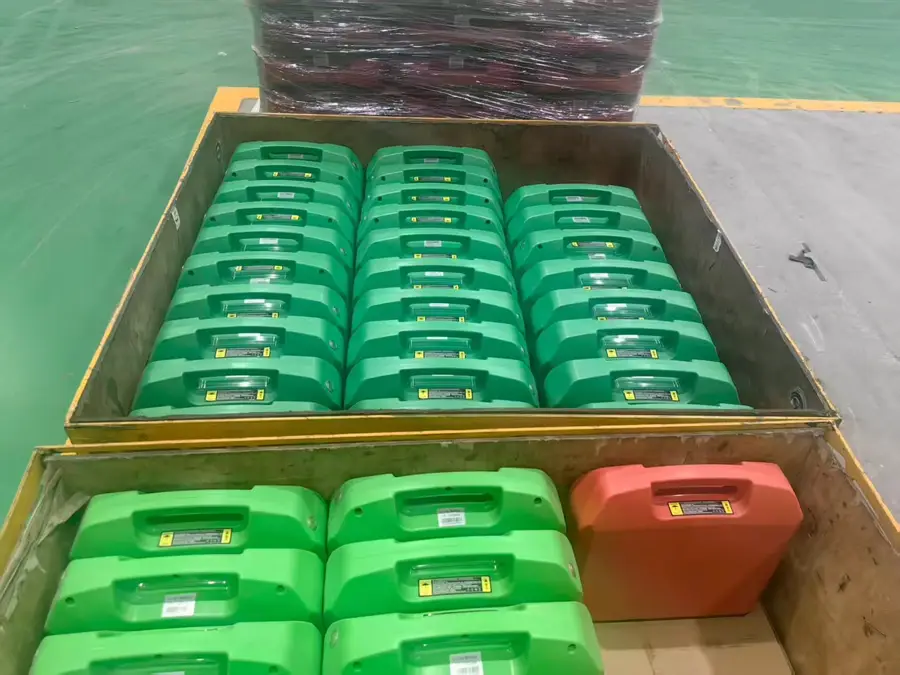

Maintenance-free power
Long battery life with no pure-water top-ups.
- 48 V / 32 Ah maintenance-free battery
- Automatic charger
- Strengthened forks and a strong chassis for heavy duty
Horizontal drive wheel
Quality electrical parts.
Strengthened forks
No bending, long lift.
Hour meter
Track running time.
Battery indicator
Know the charge level.

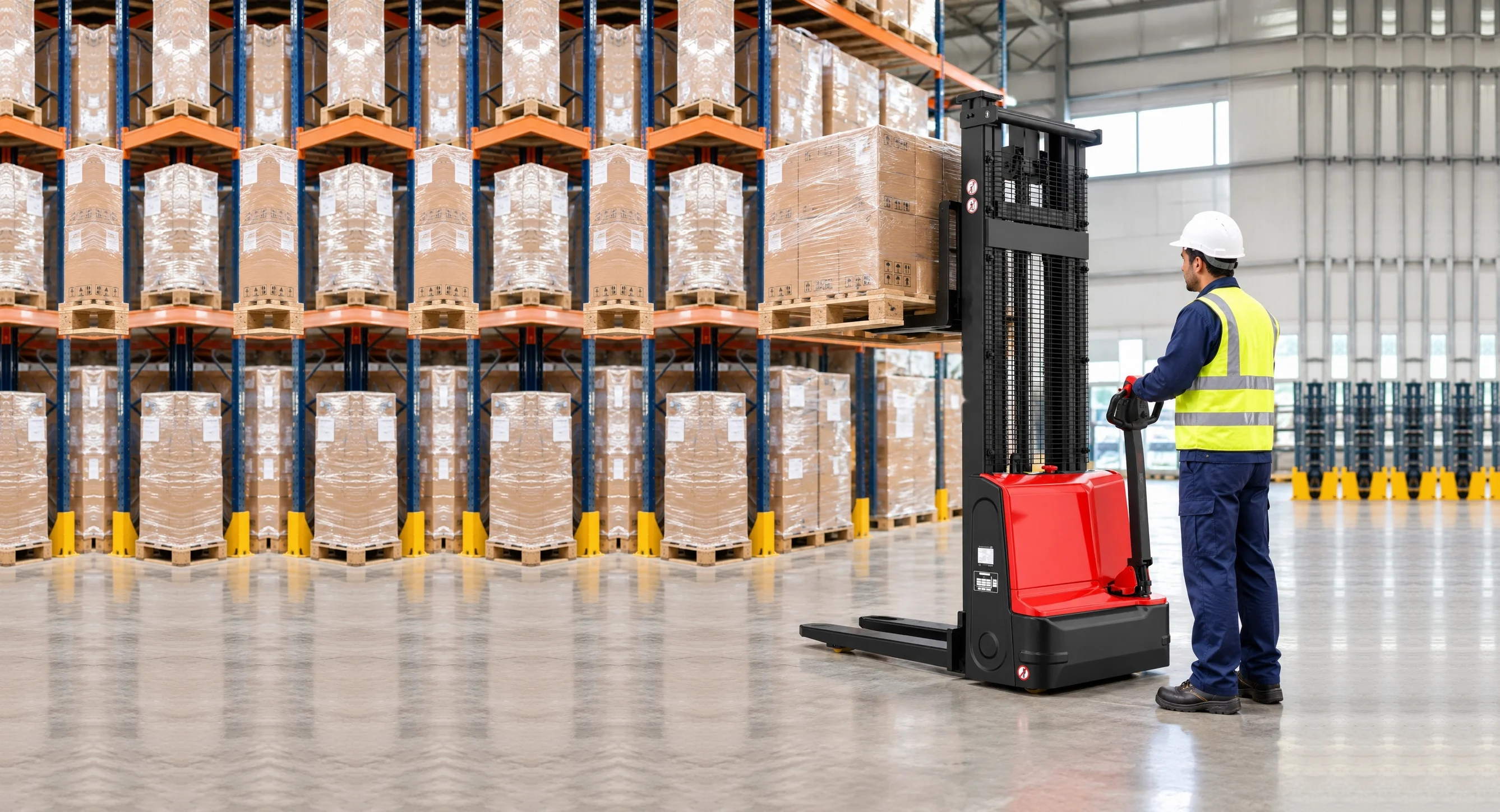

See it in action
How to operate
Full specification
CPD-15G electric walkie stacker.
Basic parameters
- Model
- CPD-15G
- Power
- Electric
- Operation
- Walkie
- Load capacity
- 1,500 kg
- Load centre
- 500 mm
- Wheelbase
- 1,250 mm
- Dead weight (battery included)
- 500 kg
Wheels
- Tyre
- PU
- Drive wheel (dia. × width)
- Ø160 × 50 mm
- Front wheel
- Ø80 × 70 mm
- Balance wheel
- Ø125 × 50 mm
- Wheels (front/rear)
- 1x + 2 / 4
- Front / rear wheelbase
- 515 / 510 mm
Dimensions
- Overall height, lowest fork
- 2,060 mm
- Overall height, highest fork
- 3,525 mm
- Lifting height
- 3,000 mm
- Fork height, lowest
- 85 mm
- Handle height (max / min)
- 1,207 / 775 mm
- Overall length
- 1,730 mm
- Overall width
- 820 mm
- Fork dimension
- 170 / 55 / 1,150 mm
- Fork outer width
- 685 mm
- Min. ground clearance
- 30 mm
- Stacking aisle, pallet 1000 × 1200
- 2,246 mm
- Turning radius
- 1,420 mm
Performance & motor
- Walking speed, laden / unladen
- 3.5 / 3.8 km/h
- Lifting speed, unladen
- 120 mm/s
- Lifting speed, laden
- 70 mm/s
- Gradeability, laden / unladen
- 3% / 5%
- Braking
- Electromagnetic
- Driving motor
- DC 1.2 kW
- Lifting motor
- DC 2.2 kW
- Battery
- 4 × 12 V / 32 Ah
- Noise
- ≤ 74 dB(A)
Brochure & datasheet
The CPD-15G datasheet on one page.

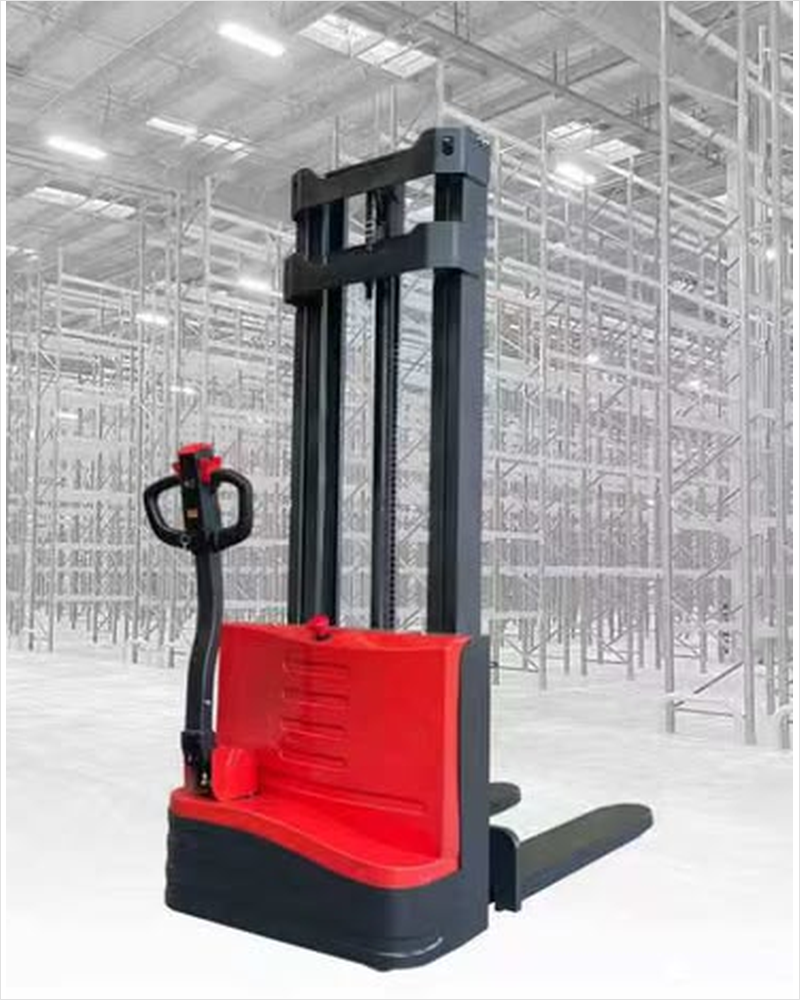

- Advantages and product photo
- Full technical data table

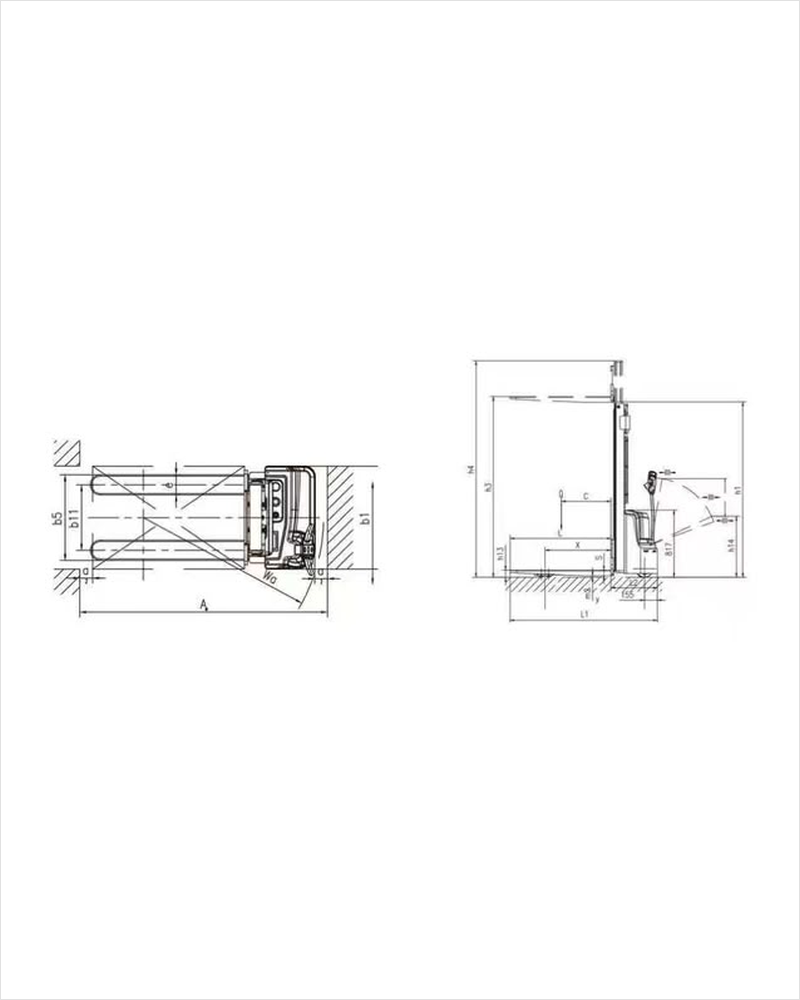

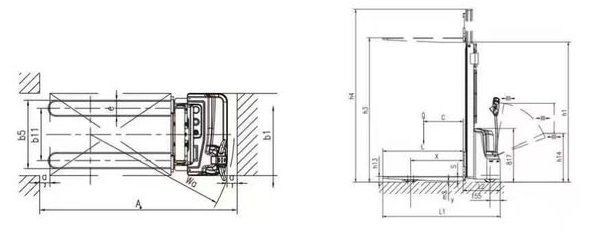

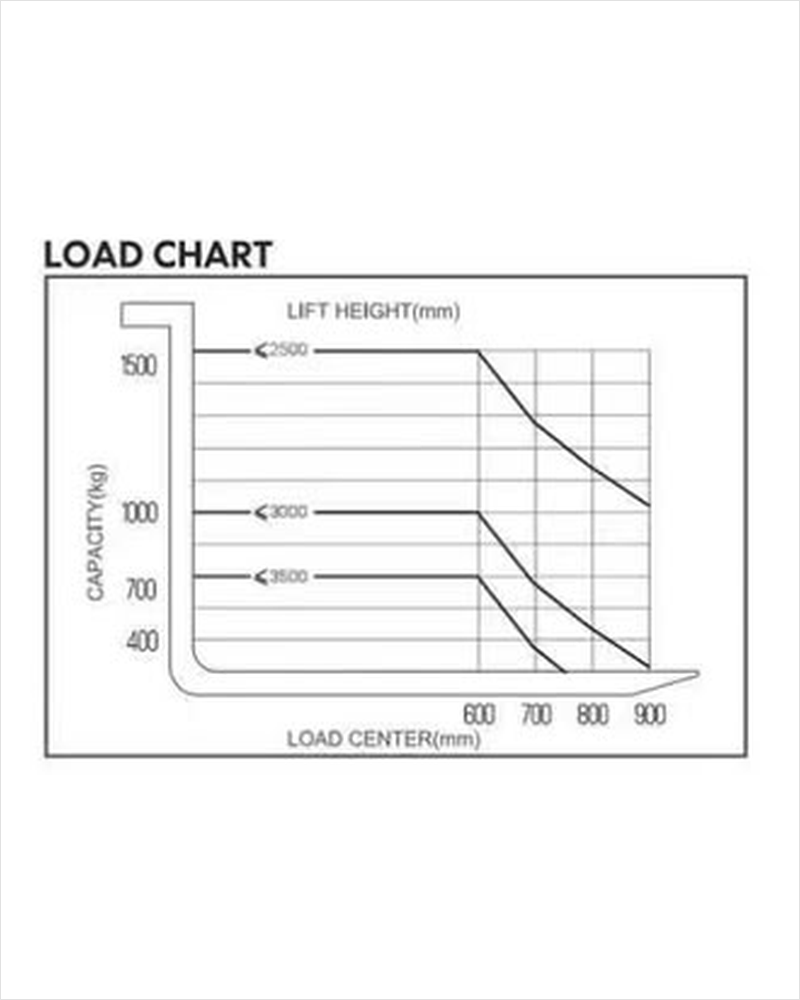

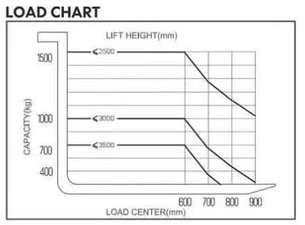

- Load chart and dimension drawings
Need help choosing the right truck?
Tell us what you lift, how high and how often — our team will point you to the right model and a sharp price, fast.
Electric forklifts, power pallet trucks and hand pallet trucks — priced online and delivered nationwide across Ireland.
